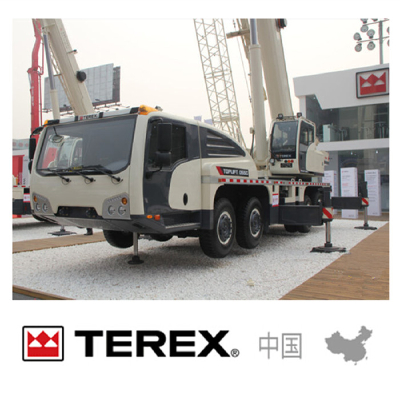

TEREX TOPLIFT TRUCK CRANE 55T CRANE LIFT

TEREX TOPLIFT TRUCK CRANE 55T CRANE LIFT

  • Min.Order Quantity: 1 Set
  • Supply Ability: 500 Sets per Quarter
  • Port: CHINA PORT
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
Verified Supplier TEREX (CHINA) COPORATION
| Factory
Experience:2008-03-25
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  13665x2800x3620mm
  • Place of Origin:  CHINA
  • Brand Name:
  • Model Number:  TOPLIFT 55
  • Weight: 41880.000 kg


TEREX TRUCK CRANE TOPLIFT 55, 55T Loading capacity.


Specification:


Crane Weight: 41880kg

Axle loads: Steering axle---15940kg;  Drive axle --- 25940kg;

Ground Clearance:  Min. Ground Clearance---280mm;

                           Ramp angle --- 18°;

                           Approach angle --- 18°

                           Departure angle --- 11.5°

Wheel Base: 1450+ 3950+1350mm

Wheel track : 2280+2056mm

Outrigger Dimensions: Longitudinal span --- 5.8M

                               Transverse span --- 7.2m

Overal Dimension:  13650x2800x3620mm

Lifting capacity:  Max. Rated capacity for main hook --- 55T

                       Max. Rated capacity for auxilary hook --- 4T

                       Max. Load Moment --- 1823kN.m

Number of sections:  5

Base boom length: 11.1m

Base boom Max. lift height: 11.044m

Fully extended boom length: 42m

Fully extended boom Max. lift height: 42.14m


Engine: Cummins ISDe 340  or WEICHAI

Rated power: 250kw/2200rpm

Max. torque: 1425N.m@1100-1400rpm


Chassis: 8x4 type  with fifth outrigger for 360° boom operation

Max. turning radius: 12M
