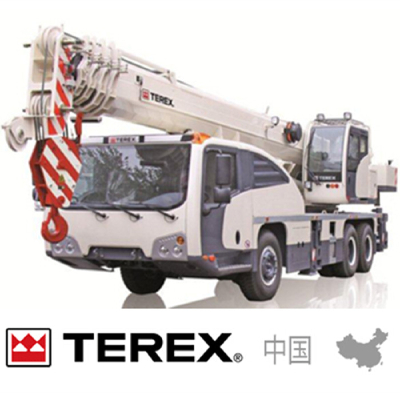

TEREX TRUCK CRANE TOPLIFT 25, 25T Loading capacity.

Specification:

Crane Weight: 32890kg

Axle loads: Steering axle---7500kg;  Drive axle --- 25390kg;

Ground Clearance:  Min. Ground Clearance---267mm;

                           Ramp angle --- 15.9°；

                           Approach angle --- 18.5°

                           Departure angle --- 13.6°

Wheel Base:  4225+1350mm

Wheel track : 2069+1830mm

Outrigger Dimensions: Longitudinal span --- 5.03M

                               Transverse span --- 6.1m

Overal Dimension:  12660x2500x3450mm

Lifting capacity:  Max. Rated capacity for main hook --- 25T

                       Max. Rated capacity for auxilary hook --- 3T

                       Max. Load Moment --- 980kN.m

Number of sections:  5

Base boom length: 10.5m

Base boom Max. lift height: 10.57m

Fully extended boom length: 40m

Fully extended boom Max. lift height: 40m

Engine： Cummins ISDe285  or WEICHAI

Rated power: 210kw/2500rpm

Max. torque: 970N.m@1200-1700rpm

Chassis: 6x4 type  with fifth outrigger for 360° boom operation

Max. turning radius: 10M

Please contact me for more details and best price
