- Size: 6830X1790X2000MM
- Place of Origin: CHINA
- Brand Name:
- Model Number: Z-45/25
- Weight: 7394.000 kg

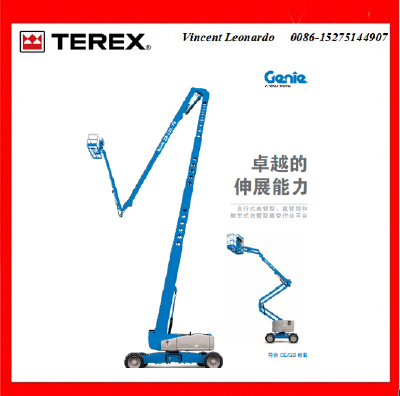

TEREX GENIE 16M ELECTRIC/BATTERY POWER SELF PROPELLED ARTICULATED BOOM, AERIAL WORK PLATFORM
Overview
1. 48V DC machine with diesel powered generator acting as 100 amp battery charger make this boom ideal for indoor and outdoor applications
2. 6 ft (1.83 m) inside turning radius delivers excellent maneuverability
3. 2WD travels at 3 mph (4.8 km/h) with 30% gradeability
4. Ascent and descent along a vertical plane with or without boom retraction or extension
5. Large 6 ft (1.83 m) all-steel platform lifts up to 500 lb (227 kg)
6. Self-leveling platform features a 180° hydraulic rotation for Z-45/25 models and a 160° hydraulic rotation for Z-45/25J models
7. Drive enabled system informs operator when the drive and steer functions will move opposite controller movements
8. 6 ft (1.83 m) inside turning radius delivers excellent maneuverability
9. Self-leveling platform features 180° powered rotation for precise positioning and easy operation
Specifications
Z™-45/25 |
|
Working Height* | 51 ft 6 in (15.87 m) |
Width | 5 ft 10.3 in (1.79 m) |
Horizontal Reach | 25 ft (7.62 m) |
Up & Over Clearance | 23 ft 1 in (7.04 m) |
Lift Capacity | 500 lbs (227 kg) |
|
|
Z™-45/25J |
|
Working Height* | 51 ft 9 in (15.94 m) |
Width | 5 ft 10.3 in (1.79 m) |
Horizontal Reach | 25 ft 1 in (7.65 m) |
Up & Over Clearance | 23 ft 1 in (7.04 m) |
Lift Capacity | 500 lbs (227 kg) |
*Imperial measurements of working height add 6 ft to platform height. The metric equivalent adds 2 m to platform height.
Please contact me for more details and best price.
Mr. Vincent Leonardo
Mobile: +86-15275144907(whatsapp/viber)
- Size: 6830X1790X2000MM
- Place of Origin: CHINA
- Brand Name:
- Model Number: Z-45/25
- Weight: 7394.000 kg
