- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
- Size: 11270x2490x3000mm
- Place of Origin: CHINA
- Brand Name: TEREX
- Model Number: Z-80/60
- Weight: 17000.000 kg
CHINA TEREX GENIE 26M SELF-PROPELLED ARTICULATING BOOMS AERIAL WORK PLATFORM FOR SALE

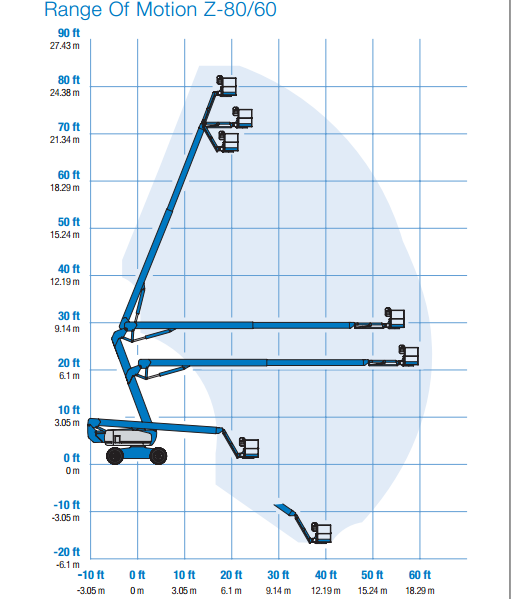

TEREX GENIE Self-Propelled Articulating Booms aerial work platform Z-80/60 SPECIFICATION: Measurements US Metric Working height Max. 84ft 25.77m Platform height Max. 78ft 23.77m Horizontal Reach Max. 60ft 18.29m Up and Over Clearance Max. 29ft 8.83m Below ground reach 15ft 10in 4.83m HEIGTH (Stowed) 9ft 10in 3m LENGTH (Stowed) 37ft 11.27m WIDTH (Stowed) 8ft 2in 2.49m Wheel base 9ft 4in 2.85m PRODUCTIVITY Lift capacity 500lbs 227kg Platform rotation 160° Vertical jib rotation 135° Turntable rotation 360° Drive speed stowed 3.0mph 4.83km/h Drive speed raised 0.68mph 1.1km/h Lift speed to full height 76sec Control 12 V DC Proportional TIRES 18-625NHS POWER (option) Deutz TD2.9 L4 4-cylinder turbo diesel, 74 hp (55 kW), Tier 4 final Perkins 404F-22T 4-cylinder turbo diesel, 58 hp (43 kW), Tier 4 final Continental TME27 4 cylinder gas/LPG 74 hp (55 kW) Deutz TD 2011 L04i 4 cylinder diesel 74 hp (55 kW) Perkins 804D-33 4 cylinder diesel 63 hp (47 kW) WEIGHT 2WD 35,900lbs 16,284kg 4WD 37,500lbs 17,010kg
Please contact me for more details and price.
Mr. Aron Augustin
Mobile: +15275144907

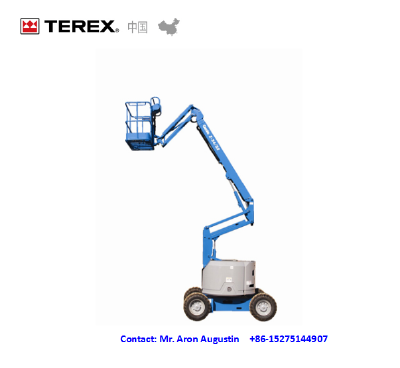

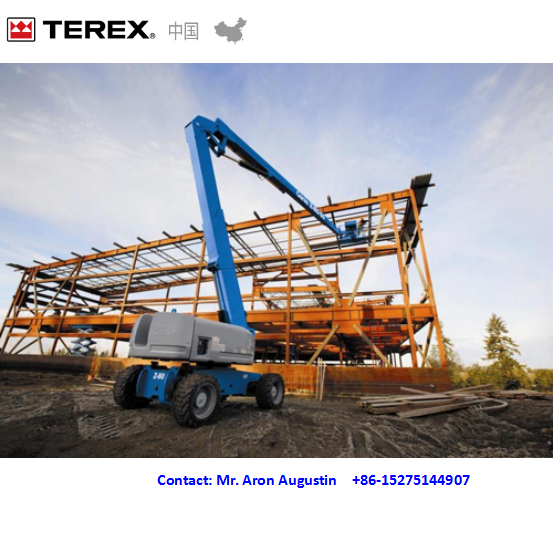

PHOTOS for reference:
- Size: 11270x2490x3000mm
- Place of Origin: CHINA
- Brand Name: TEREX
- Model Number: Z-80/60
- Weight: 17000.000 kg
